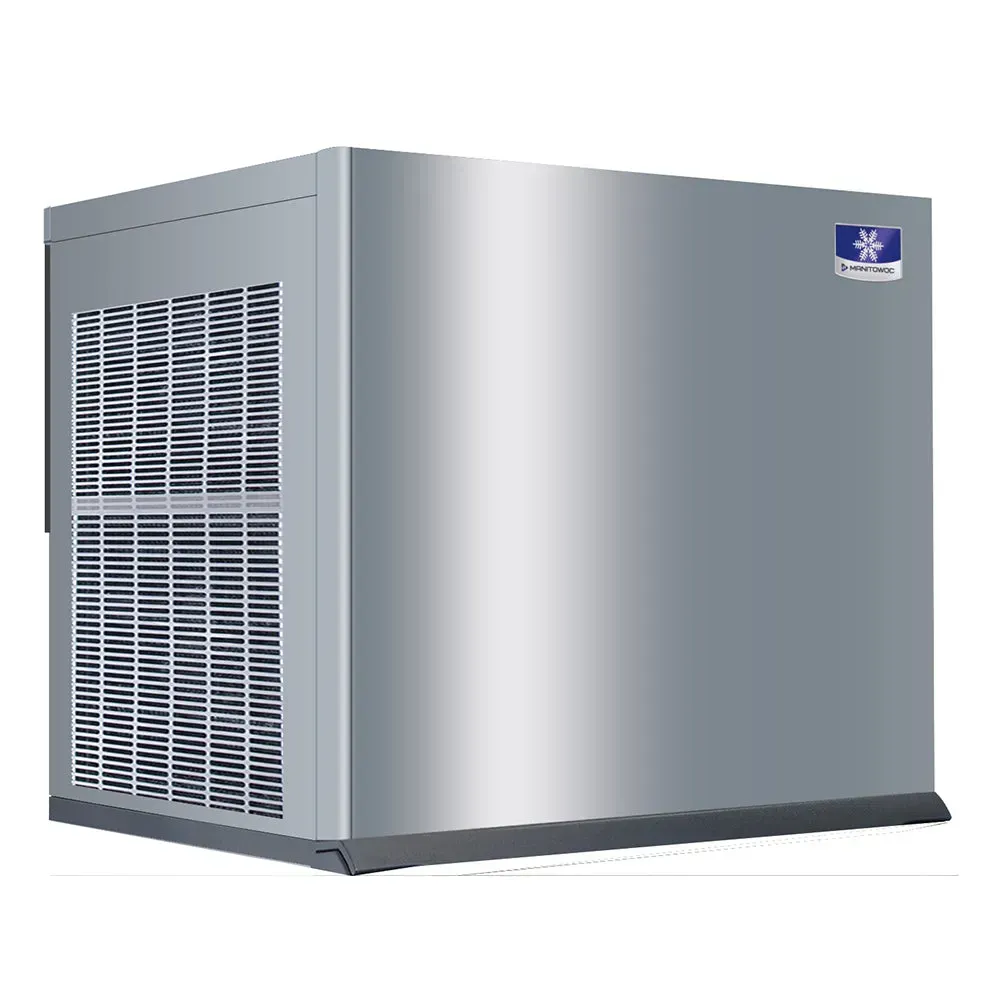

Manitowoc remote condenser flake ice machine with stainless steel construction and ventilation grille for efficient commercial ice production.

Opening a Restaurant?

From kitchen equipment to financing, we’ve got you covered.

Key Specification

Manufacturer
Manitowoc
Country of Origin
Proudly Made In America
Material
Stainless steel
Color
Silver
Phase
1 Phase
Ice Type
Flake Ice
Amps
1.4 A
Hertz
60 Hz
Condenser Type
Air-Cooled Remote Traditional
Compatible Model
D570
Maximum Fuse Size
15 A
Product Depth
23.6 in
Water Inlet Size
3/8 in
Power Usage
3.98 kWh per 100 lbs
Selling Unit
1/Each
Type
Ice Machine Head
Warranty
3 years parts & labor for Ice Maker, 5 years parts & labor for Evaporator & Compressor
Shipping Weight
200 lb
Voltage
208/230 V
Plug Type
Hardwire
Refrigerant Type
R404A
Ambient Temperature Range
50˚ to 110˚F
Certifications
ETL Listed, ETL Sanitation Listed
Series
RFF1220
Product Width
22 in
Product Height
26 in
Drain Size
1/2 in
24 Hour Ice Production
1092 lb

Product Overview

The Manitowoc RFF1220C QuietQube is a commercial-grade ice machine head that produces flake ice. Constructed from stainless steel with a silver finish, it operates on 208/230 V, 1 phase, and 60 Hz, drawing 1.4 amps.

This unit uses a traditional air-cooled remote condenser and consumes 3.98 kWh per 100 lbs of ice. It uses R-404A refrigerant, features a hardwired plug, and supports a maximum fuse size of 15 A.

The machine includes a 3/8 in water inlet, a 1/2 in drain, and is designed for use in ambient temperatures between 50˚F to 110˚F. It measures 22" W x 23.6" D x 26" H and is compatible with ice bins such as the Manitowoc D570.

The RFF1220C is ETL Listed and ETL Sanitation Listed, and is sold as 1/Each. It is backed by a 3-year parts and labor warranty for the ice maker and 5-year parts and labor coverage for the evaporator and compressor. This unit is made in America.

Purchased this product?

Share your honest review to help hotels and restaurants make smarter choices.

Questions from buyers like you

Answered to help you make the right decision.
The RFF1220C produces flake ice.
It operates on 208/230 volts, 1 phase, 60 hertz, and draws 1.4 amps
This unit consumes 3.98 kilowatt-hours per 100 pounds of ice produced.
It features a traditional air-cooled remote condenser.
The unit uses R-404A refrigerant.
