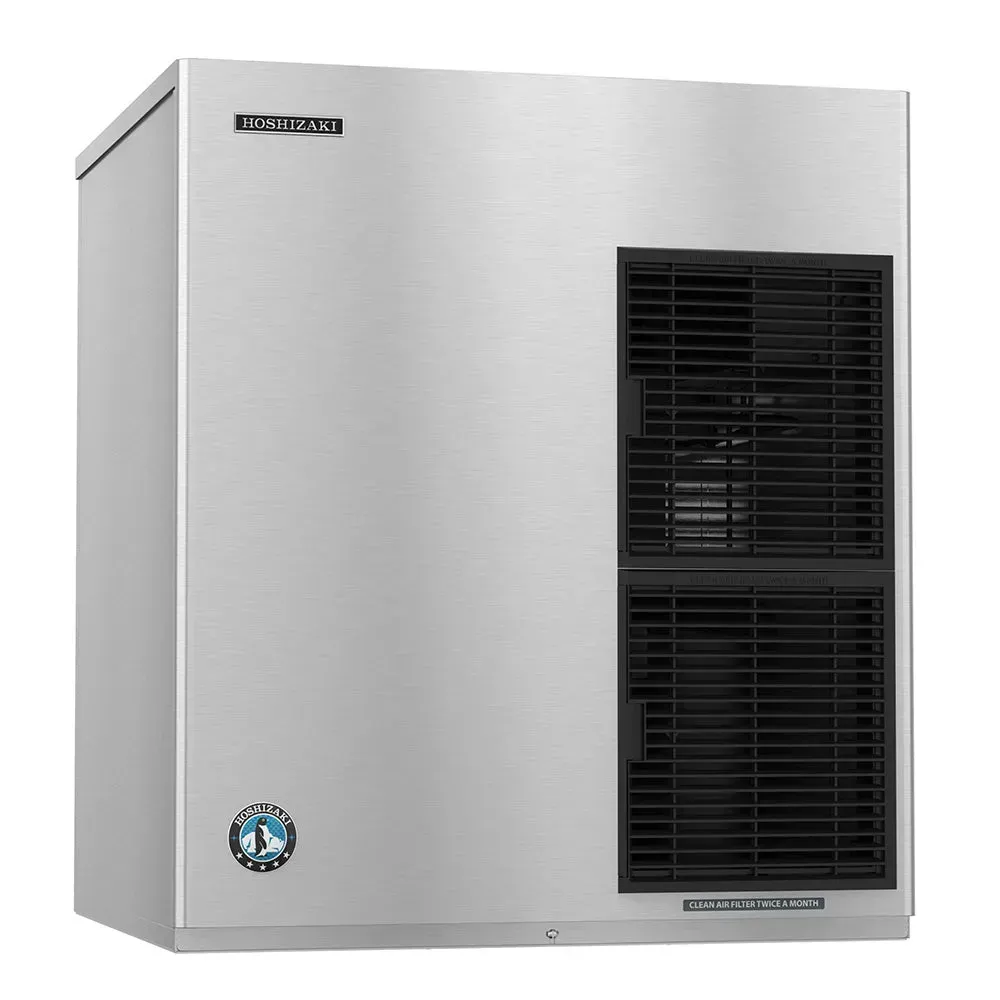

Compact water cooled flake ice machine head by Hoshizaki America yields sixteen hundred pounds daily and fits bars, buffets, and cafeterias.

Opening a Restaurant?

From kitchen equipment to financing, we’ve got you covered.

Key Specification

Manufacturer
Hoshizaki
Country of Origin
Japan
Material
Stainless Steel
Color
Silver
Phase
1 Phase
Ice Type
Flaker Ice
Plug Type
Hardwire
Shipping Weight
350 lb
Ambient Temperature Range
45°F to 100°F
Water Pressure Range
10 psig to 113 psig
Product Weight
300 lb
Design
Advanced CleanCycle24
Included
Auger With Bearing
Shipping Depth
32 in
Voltage Range
187 Volts - 253 Volts
Refrigerant Capacity
4.5
Maximum Fuse Size
20 A
Storage Bin
Without Storage Bin
Mounting Configuration
Dual Unit in 60 Inches Space
Product Depth
27.37 in
Water Inlet Size
1/4 in
Power Usage
3.2 kWh per 100 lbs.
Selling Unit
1/Each
Type
Ice Machine Head
Warranty
3 Years Parts & Labor, 5 Years Parts on Compressor
Features
2 Seconds Flush Cycle Every Hour, Infrared Bin Control
Voltage
208/230 V
Amps
15.4 A
Refrigerant Type
R-404A
Hertz
60 Hz
Condenser Type
Water Cooled
Water Temperature Range
45°F to 90°F
Certifications
NSF Listed, AHRI Certified, UL Certified
Series
Slim-Line Series
Shipping Width
34.75 in
Shipping Height
40 in
Heat Rejection
12900 BTU/Hr
Number of Wires
4 Wires
Water Usage (Potable 90°F/70°F)
12 gal
Water Usage (Condenser 90°F/70°F)
105 Gallons Per 100 lbs.
Product Width
30 in
Product Height
34.62 in
Drain Size
3/4 in
24 Hour Ice Production
1624 lb

Product Overview

The Hoshizaki F-1501MWJ is a premium commercial flake ice machine head manufactured in Japan with superior stainless steel construction. This professional-grade ice maker is part of Hoshizaki's renowned F Series, designed specifically for high-volume commercial applications. The unit delivers consistent, high-quality flake ice perfect for food display, processing, and preservation applications.

Operating at 208/230V single-phase power, this machine incorporates advanced CleanCycle24 technology for optimal hygiene. The infrared bin control ensures precise ice level monitoring and production control. With a power usage of just 3.2 kWh per 100 lbs and R-404A refrigerant, it maintains excellent energy efficiency while delivering reliable performance.

The compact unit measures 30" width x 27.37" depth x 34.62" height, ideal for commercial kitchen installations. Its water-cooled condenser system operates within a water pressure range of 10-113 psig and water temperature range of 45°F-90°F. The machine features a 1/4" water inlet and 3/4" drain size, with a total water usage of 105 gallons per 100 lbs of ice production.

This ice machine carries NSF, AHRI, and UL certifications, ensuring compliance with industry standards. It comes with a comprehensive warranty including 3 years parts and labor, plus 5 years on the compressor. The unit is designed for professional installation, requiring hardwired 4-wire electrical connection with a maximum fuse size of 20 amps. A separate storage bin is required and can be purchased to complete the ice making system.
