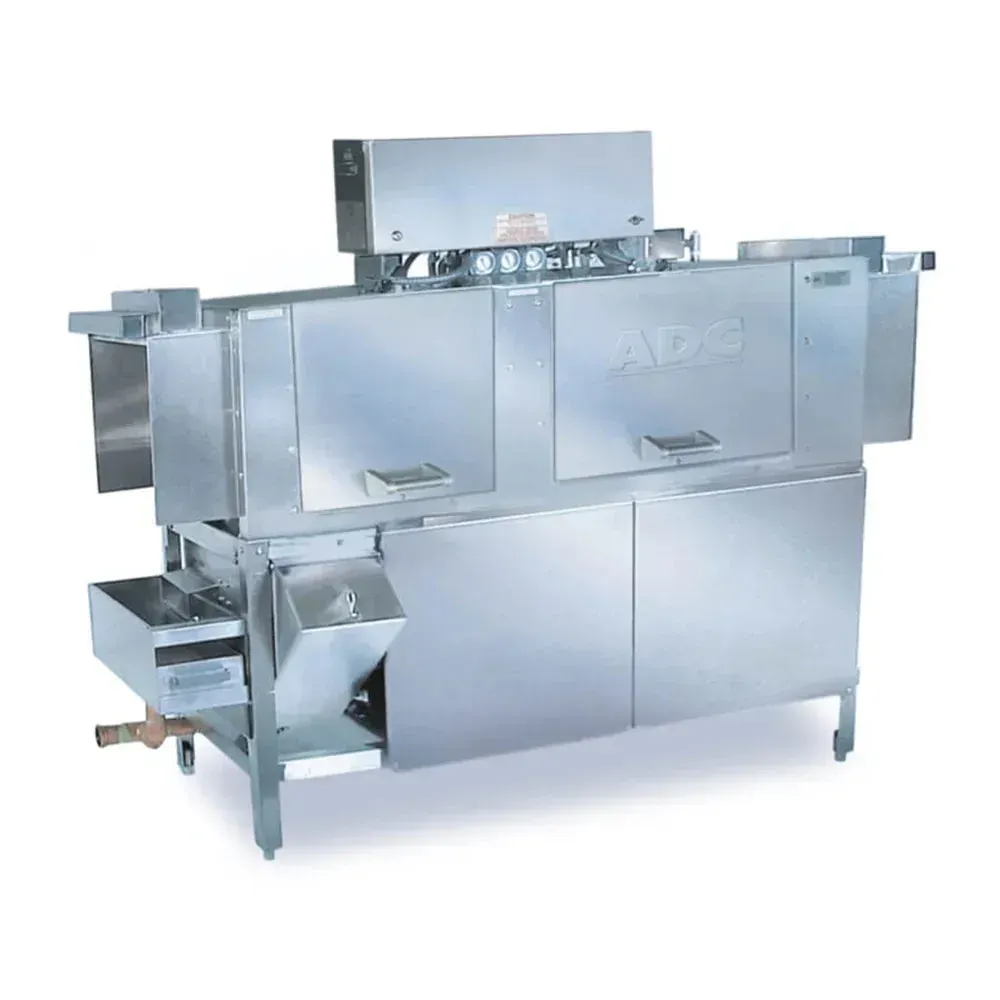

American Dish ADC-66 L-R 66" Conveyor Dishwasher Low-Temp with 5-Wire and Polymer Rinse Jets

The American Dish Service 213-1066.0000 Conveyor Dishwasher is a high-performance, low-temperature dishwashing unit designed for fast-paced commercial kitchens. Made in America from heavy-duty stainless steel, this unit delivers consistent cleaning power while maintaining long-lasting durability. It processes up to 244 racks per hour using a conveyor speed of 6.8 feet per minute.

It supports left-to-right direction control and features polymer rinse jets for effective rinsing. The low-temp wash operates at 140°F, and the rinse uses 50 ppm chlorine at 120°F to maintain hygiene. The system has a 3 HP wash power, 1.5 HP scrap power, 1/3 HP conveyor, and 1/3 HP rinse, all driven by 208/240V, 3-phase power with a 90 A current draw. A slip clutch protects the conveyor from rack damage, while pump protection shields the wash pump from soil.

Measuring 86" W x 34.5" D x 81.25" H (with control box), this dishwasher requires a 15" x 24.5" access door clearance and supports 19.75" x 19.75" rack sizes. It consumes just 0.49 gallons of water per rack and features an 18 kW wash tank heater. The unit requires professional installation, including a code-compliant 3/4" FPT water inlet, a 2" drain, and wiring with 3 gauge wires, 10 gauge neutral, and 1 ground. A 72" straight exit table is necessary for proper setup.

Other key features include a pre-wash system with a V-shaped basket, autofill, and auto shut-off, ensuring efficient and user-friendly operation. The table-to-table width is 66". This unit is NSF approved and cULus listed, guaranteeing compliance with industry safety and sanitation standards.
