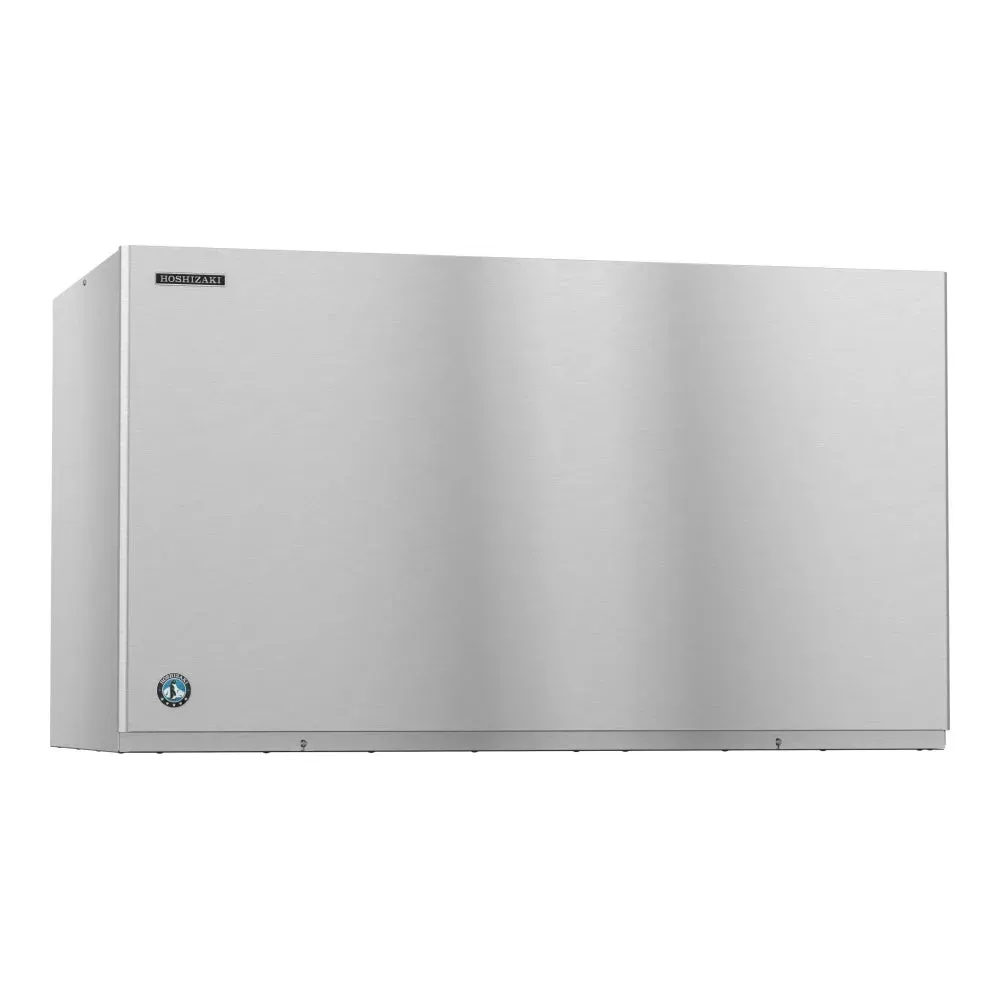

The Hoshizaki KM-1601SRJZ with URC-22FZ is a remote-cooled crescent cuber ice maker with a stainless steel exterior. It measures 48" (W) x 27-3/8" (D) x 27-3/8" (H) and produces up to 1,640 lbs. of crescent-shaped ice cubes per day. It allows stacking of two units for double production. It is compatible with bins and dispensers, including models B-800, B-900, B-1150, B-1300, B-1500, and B-1650.

The unit operates within an ambient temperature range of 45°F to 100°F and a water temperature range of 45°F to 90°F. Water pressure requirements range from 10 to 113 psig. It uses R-404A refrigerant with a charge of 15 lbs. 3.4 oz. (6,900 g). The heat rejection rate is 21,200 BTU/hr. It consumes 3.96 kWh per 100 lbs. of ice at 90/70.

It runs on a single-phase 208-230V/60/1 electrical connection with a 15.9-amp draw and a maximum fuse rating of 20A. It requires hardwiring at the installation site. If neutral is unavailable, a transformer kit (HS-5030) is required. It features the EverCheck™ alert system and CycleSaver™ design for reliability and efficiency.

Made in America, ENERGY STAR® qualified, it includes a 3-year parts and labor warranty on the entire machine. The evaporator has a five-year parts and labor warranty. The compressor and air-cooled condenser coil have a five-year parts warranty.
