Ice-O-Matic stainless steel air-cooled half cube ice machine head without storage bin, providing consistent ice output for commercial operations.
Ice-O-Matic stainless steel air-cooled half cube ice machine head without storage bin, providing consistent ice output for commercial operations.
Ice-O-Matic stainless steel air-cooled half cube ice machine head without storage bin, providing consistent ice output for commercial operations.
Ice-O-Matic stainless steel air-cooled half cube ice machine head without storage bin, providing consistent ice output for commercial operations.
Ice-O-Matic stainless steel air-cooled half cube ice machine head without storage bin, providing consistent ice output for commercial operations.
Ice-O-Matic stainless steel air-cooled half cube ice machine head without storage bin, providing consistent ice output for commercial operations.
Ice-O-Matic stainless steel air-cooled half cube ice machine head without storage bin, providing consistent ice output for commercial operations.
Ice-O-Matic stainless steel air-cooled half cube ice machine head without storage bin, providing consistent ice output for commercial operations.

Opening a Restaurant?

From kitchen equipment to financing, we’ve got you covered.

Key Specification

Manufacturer
Ice-O-Matic
Material
Stainless steel
Color
Silver
Shipping Weight
155 lb
Phase
1 Phase
Condenser Type
Air-Cooled Self-Contained
Plug Type
Hardwire
Water Inlet Size
3/8 in
Hertz
60 Hz
Interior Material
Plastic
Certifications
cULus Listed, NSF Approved, ISO 9001 Certified, CE Listed, Energy Star
Series
CIM0530
BTU Per Hour
6252 BTU
Manifold Replacement Models
CIM0535
Sanitation
One-touch sanitization & descaling
Max Daily Ice Production
586 Lbs/Day
Installation Configuration
Installed on top of compatible bin & dispenser
Product Depth
24.25 in
Ice Size (W x D x H)
3/8 x 7/8 x 7/8 Inches
Drain Size
3/4 in
Selling Unit
1/Each
Type
Air Cooled Ice Machine
Warranty
3 years parts & labor for Ice Maker, 5 years parts for Evaporator & Compressor
Features

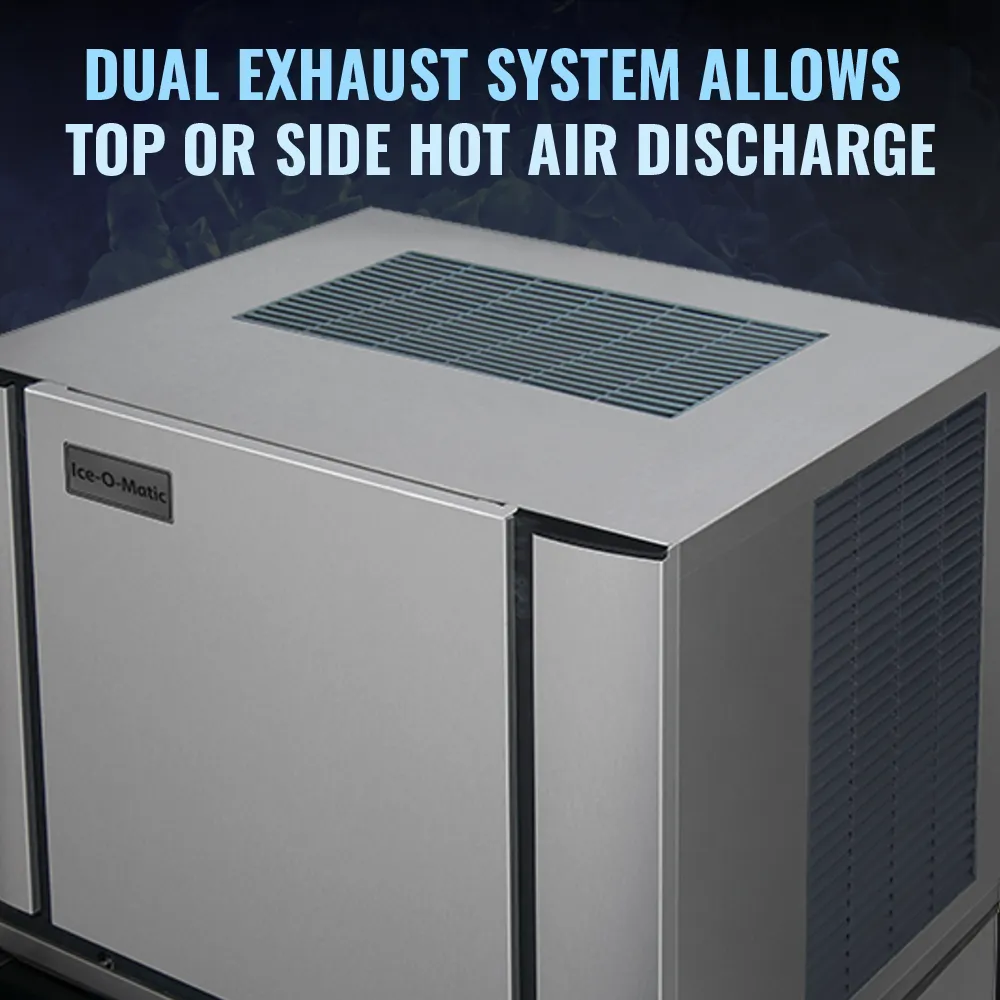

BPA-free plastic food zone, Agion® antimicrobial, dual exhaust
Voltage
115 V
Ice Type
Half Size Cubes
Refrigerant Type
R-404A
Amps
17.8 A
Water Usage
19.9 gal
Ambient Temperature Range
50°F to 100°F
Compatible Model
Bins: B25, B40, B42, B55, B110, B700, B1000, B1300, B1325, B1660
Potable Water Pressure Range
20 to 80 Psi
Compatible Water Filters
IFQ1-XL, IOMQXL1
Junction Box Size
7/8 in
Cleaning Alert Indicator
Smart LED light
Remote Condenser Temperature Range
-20˚F to 120˚F
Product Width
30.25 in
Product Height
21.25 in
24 Hour Ice Production
561 lb
Power Usage
5.5 kWh per 100 lbs

Product Overview

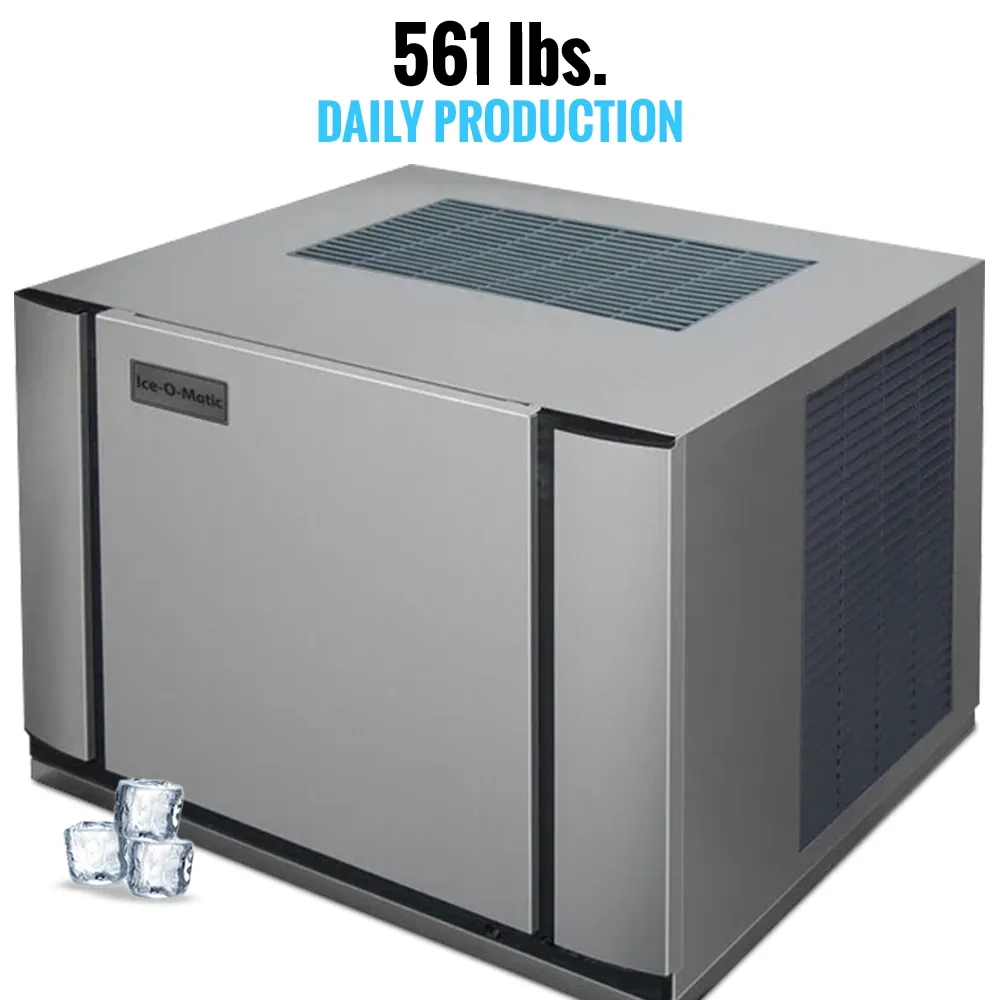

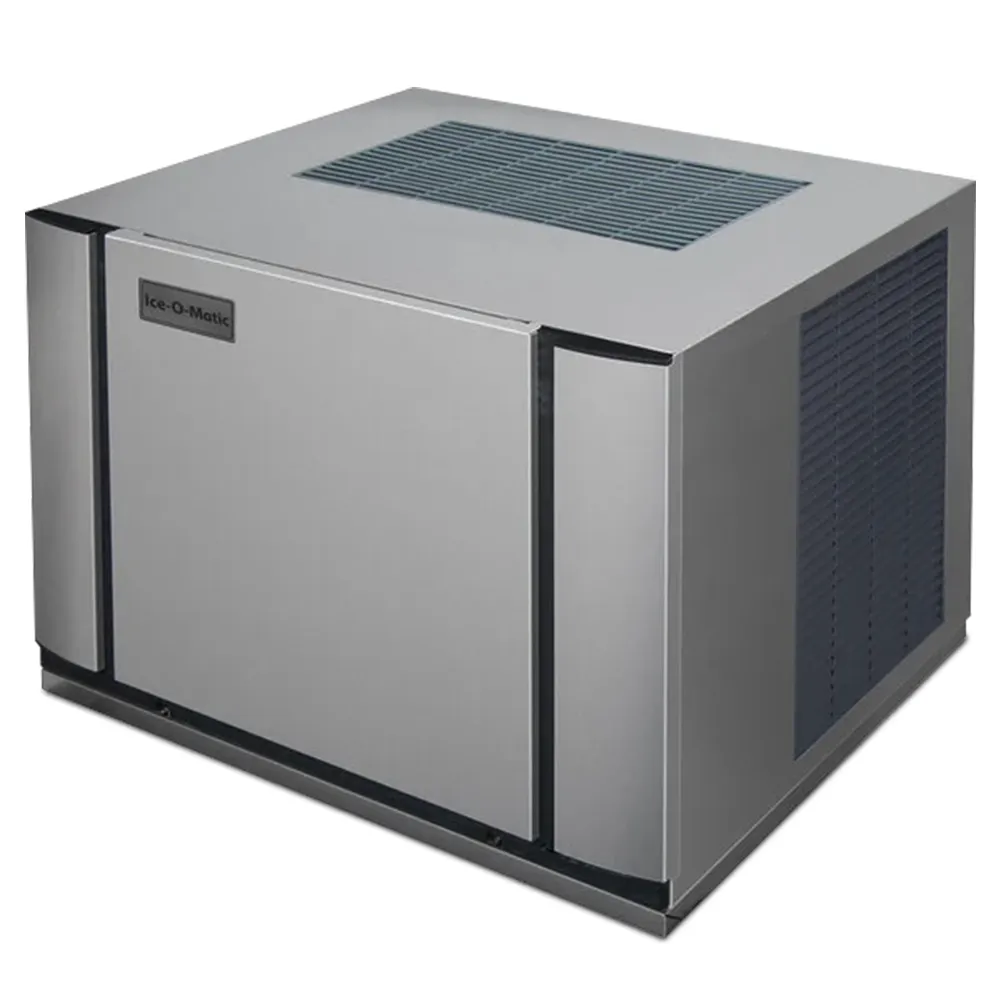

The Ice-O-Matic CIM0530HA is a compact, self-contained air-cooled ice machine ideal for cafés, healthcare facilities, and office kitchens that need dependable ice production in a small footprint. With a daily production capacity of 561 lbs of half-size cube ice, it delivers consistent performance to meet everyday demands.

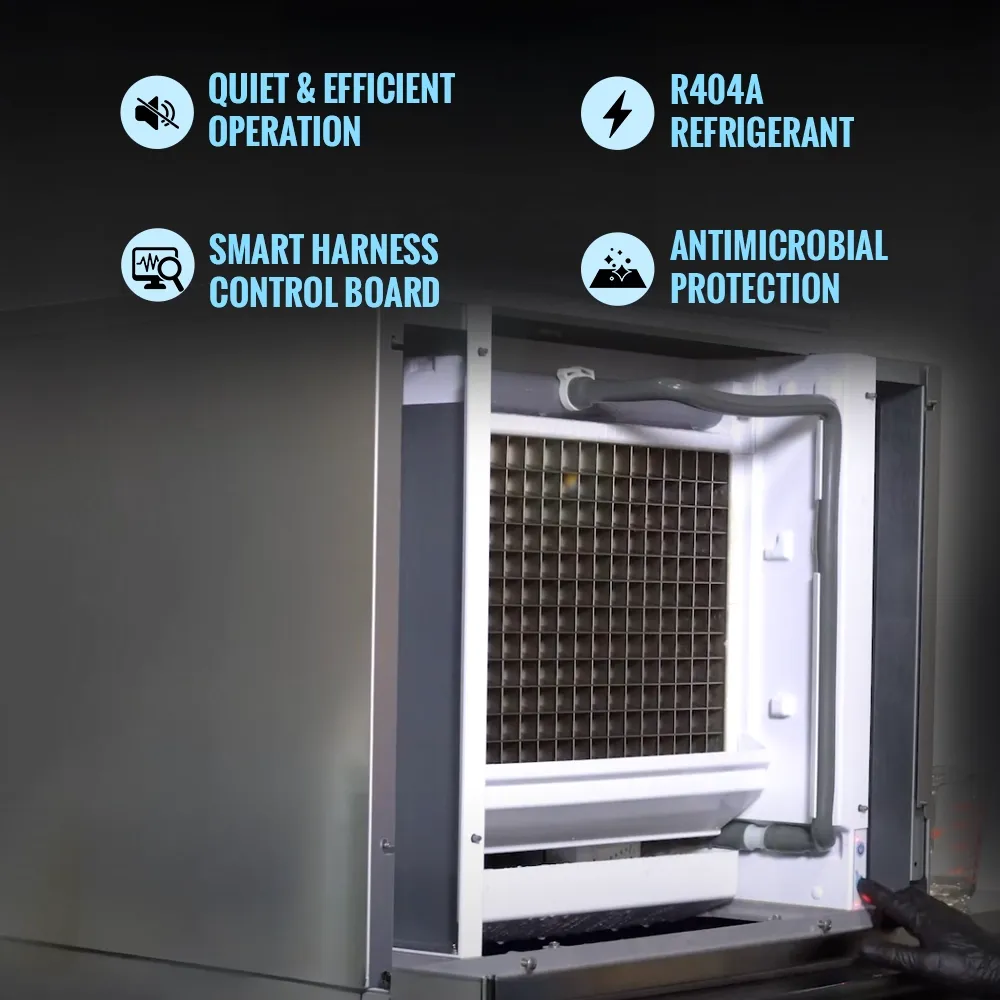

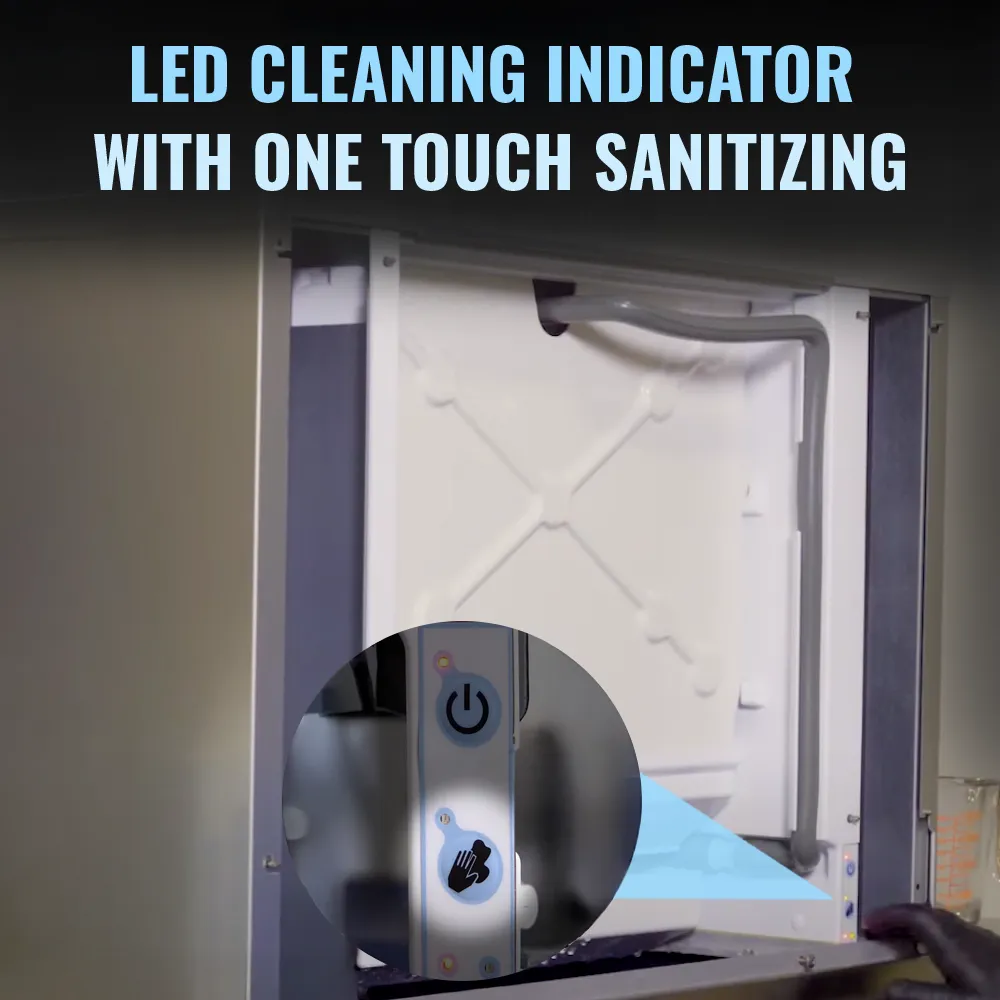

This unit features a stainless steel exterior, BPA-free plastic food zone, and Agion® antimicrobial protection to ensure hygienic operation. Designed with one-touch sanitization and descaling, plus a Smart LED cleaning alert, it streamlines routine maintenance for busy staff.

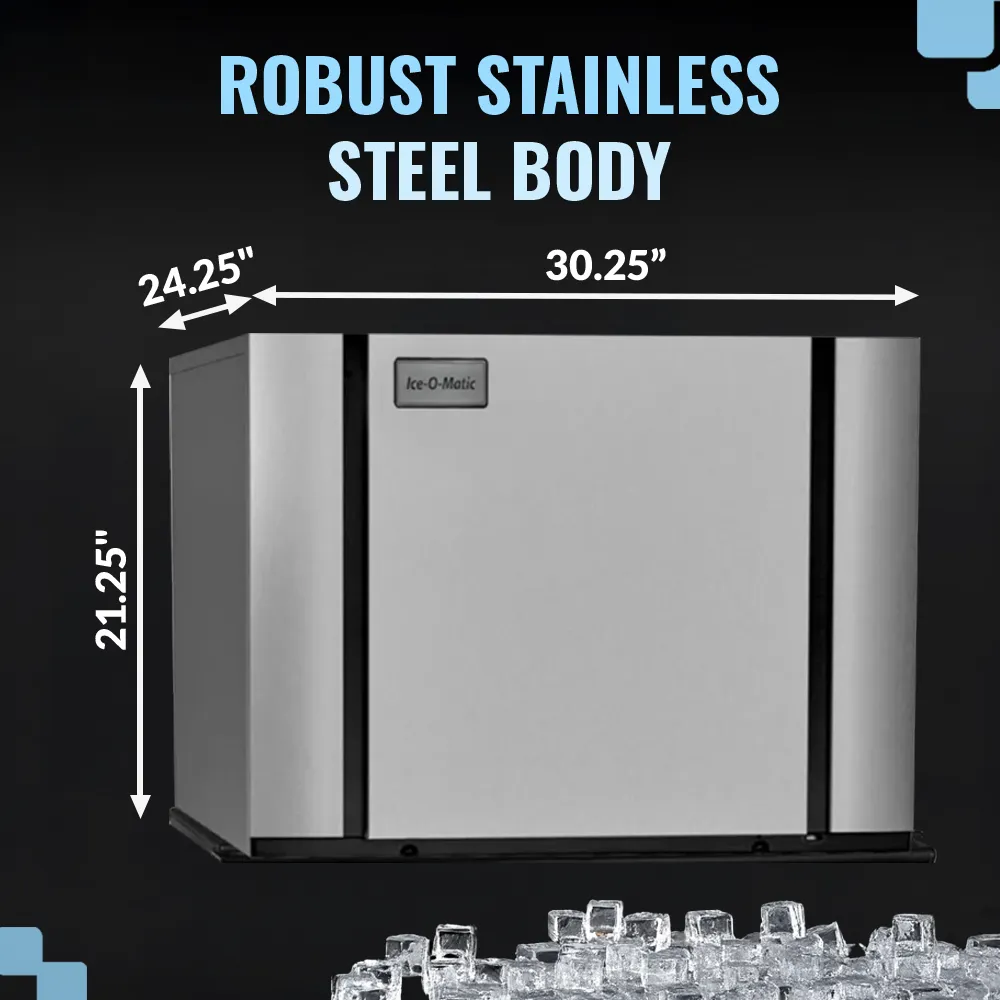

The CIM0530HA operates on 115V, uses 17.8 amps, and consumes 5.5 kWh per 100 lbs of ice. It also has a heat rejection rate of 6,252 BTU/hr and a water usage of 19.9 gallons per 100 lbs. Measuring 30.25" W x 24.25" D x 21.25" H, it installs seamlessly atop compatible Ice-O-Matic bins like the B25, B42, and B1000.

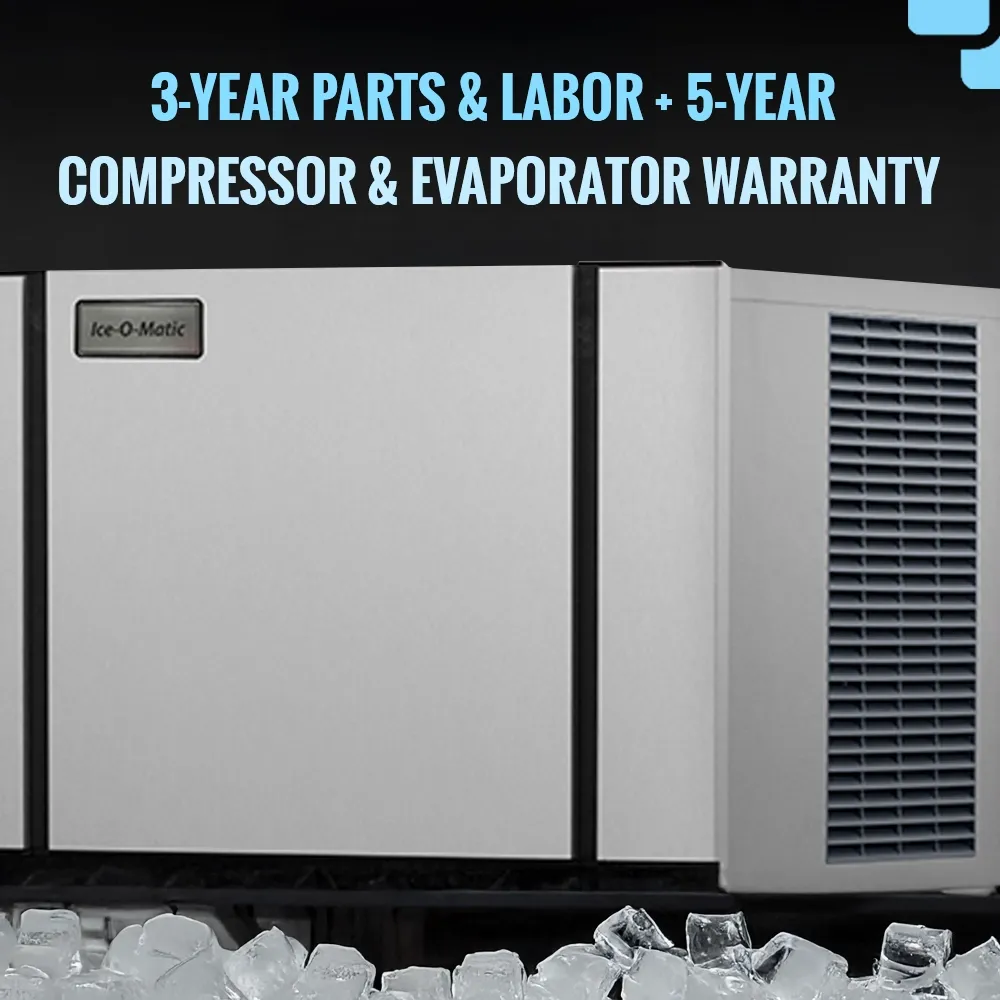

Backed by a 3-year parts and labor warranty (plus 5 years on the evaporator and compressor), this Energy Star and NSF-certified model is built for energy efficiency, sanitation, and long-term reliability.

Purchased this product?

Share your honest review to help hotels and restaurants make smarter choices.

Overall Rating

4.4

Based on 5 ratings

5
40%
4
60%
3
0%
2
0%
1
0%

How to Leave a Product Review

Step 1: Log In to Your HorecaStore Account.

Step 2: Go to the product page and click “Leave a Review” or

Head to your Order History and click “Submit Review” next to the item.

Step 3: Rate it, write a quick note, and hit Submit.

5 Reviews

Customer ReviewL

Lafayette Lynch

Verified Purchase

May 11, 2024

Small footprint, big production. Handles our busy weekends without slowing down.

Customer ReviewM

Miss Laury Sporer Jr.

Verified Purchase

Aug 11, 2024

Ice looks great in drinks, machine runs steady, and staff noticed the difference immediately.

Customer ReviewM

Miss Fannie Hoppe IV

Verified Purchase

Apr 26, 2025

Reliable, solid, and easy to maintain. Ice is always ready, output consistent, workflow much smoother.

Customer ReviewL

Lyric Schumm

Verified Purchase

Mar 12, 2025

Setup was smooth, machine runs quietly, ice comes out consistent every time.

Customer ReviewJ

Jaylan Rau

Verified Purchase

Feb 14, 2025

Air-cooled but seriously dependable. Ice quality is perfect, cubes uniform, and staff love it.

Questions from buyers like you

Answered to help you make the right decision.
The CIM0530HA uses a self-contained air-cooled system.
It operates on 115V, draws 17.8 amps, and consumes 5.5 kWh per 100 lbs of ice.
It uses approximately 19.9 gallons of water per 100 lbs of ice produced.
The unit features Agion® antimicrobial protection, one-touch sanitization and descaling, and a Smart LED cleaning alert.
It produces up to 561 lbs of half-size cube ice per day.
