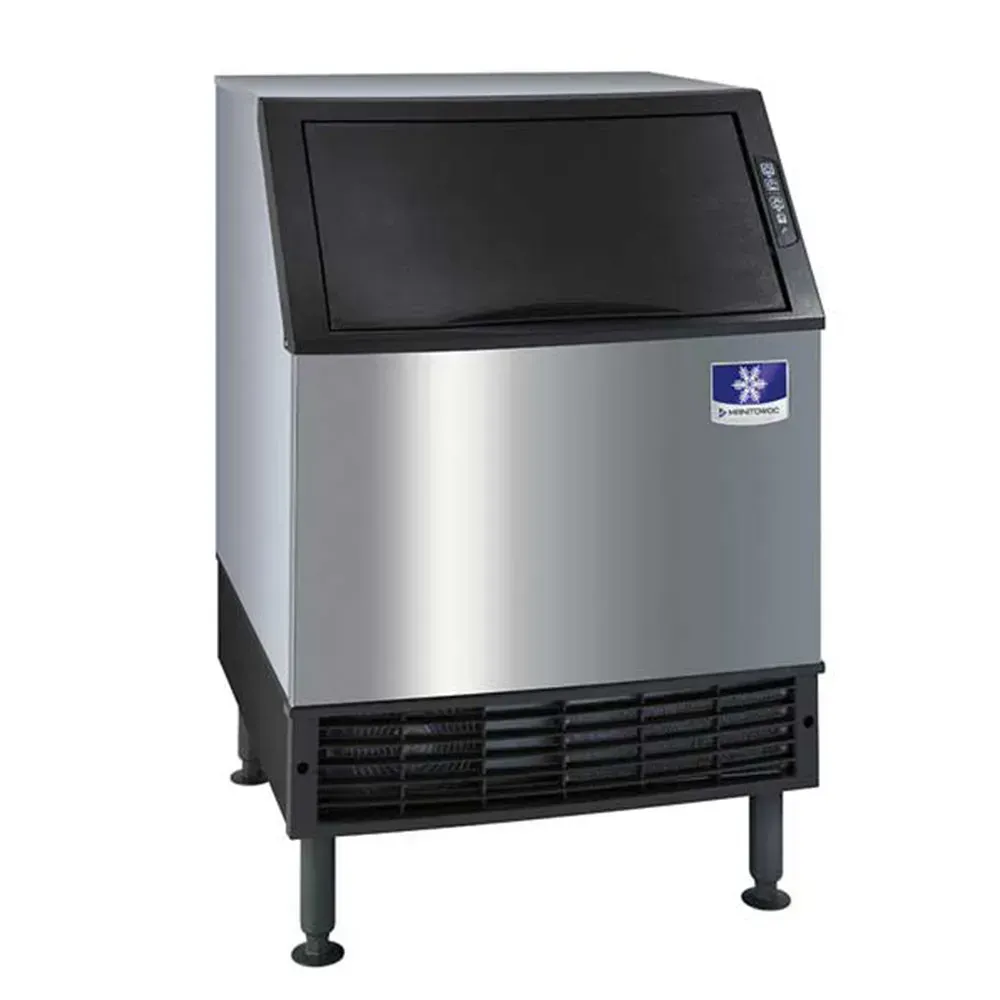

Manitowoc UDF0310A-161B NEO 30" Undercounter Dice Cube Ice Machine with 119 lb. Bin, Air Cooled, 286 lbs/day, 115V
Model Number: UDF0310A-161B
Why You’ll Love It
High Ice Production: Produces up to 286 pounds of ice per day with large 119-pound storage capacity, perfect for high-volume commercial needs.
Energy Efficient Operation: Consumes only 7 kWh per 100 pounds of ice and 15.5 gallons of water daily, providing cost-effective performance.
Comprehensive Warranty: Includes 3-year parts and labor coverage, with extended 5-year warranty on critical components like compressor and evaporator.
Multiple Certifications: Certified by AHRI, NSF, cETLus, ETL Sanitation, and ISO 9001:2015, guaranteeing safety and quality standards.
Full-Size Cubes: Produces consistent 7/8" cube size, ideal for premium beverages and commercial applications.
Easy Maintenance: Features removable air filter and bin, plus 6-inch legs for simple cleaning and servicing.
Key Specification
Product Overview
The Manitowoc UDF0310A-161B NEO is a self-contained undercounter ice machine with a bin. It is proudly made in America and has a silver finish. The unit operates on 115/120 volts, 1 phase, 60 hertz, with a NEMA 5-15P plug and draws 10 amps. It produces full-size ice cubes measuring 7/8" x 7/8" x 7/8" (W x D x H).
This machine produces up to 286 pounds of ice in 24 hours and stores 119 pounds in its bin. It includes a removable air filter, a removable bin, and 6-inch legs. The unit measures 30 inches wide, 28.5 inches deep, and 38.5 inches high. It connects via a 3/8-inch water inlet.
The machine is powered by a 3/4 HP motor and uses an air-cooled condenser. It consumes 15.5 gallons of water per day and 7 kWh of energy per 100 pounds of ice. It is designed to operate with water temperatures between 45°F and 90°F, ambient temperatures from 40°F to 110°F, and water pressure between 20 and 80 psi.
This unit is certified by AHRI, NSF, cETLus, ETL Sanitation, and ISO 9001:2015. It includes a warranty of 3 years parts and labor on the ice maker, 5 years parts and 3 years labor on the compressor, and 5 years parts and labor on the evaporator.
