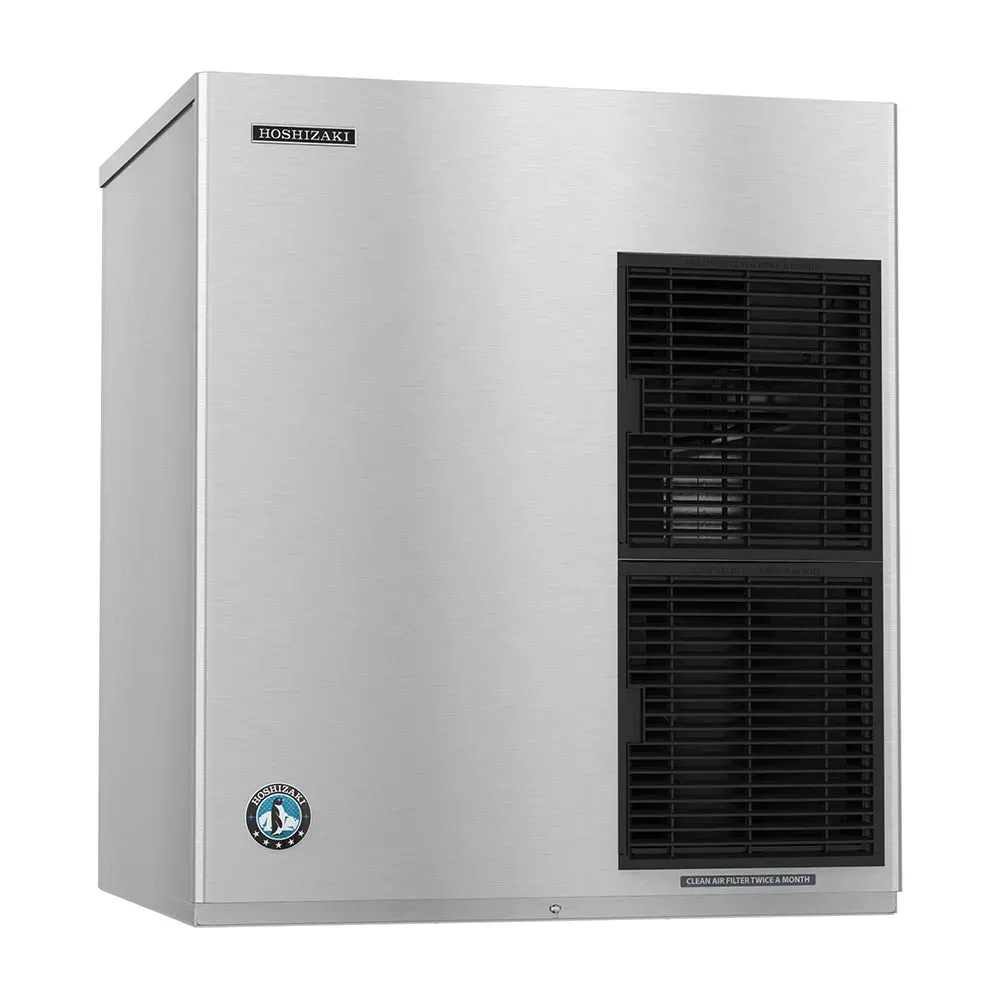

remote cooled flaker icemaker head from Hoshizaki America with a code marking and filter maintenance label, promoting reliable nugget ice production.

Opening a Restaurant?

From kitchen equipment to financing, we’ve got you covered.

Key Specification

Manufacturer
Hoshizaki
Country of Origin
Japan
Material
Stainless Steel
Color
Silver
Phase
3 Phase
Ice Type
Flake Ice
Plug Type
Hardwire
Shipping Weight
360 lb
Condenser Type
Remote Cooled
Certifications
NSF Listed, AHRI Certified, UL Certified
Design
Advanced CleanCycle24
Storage Bin
Without Storage Bin
Ambient Temperature Range
45°F to 100°F
Number of Wires
4 Wires
Heat Rejection
19500 BTU/Hr
Water Usage (Potable 90°F/70°F)
12 gal
Product Width
30 in
Product Height
34.44 in
Drain Size
3/4 in
24 Hour Ice Production
2098 lb
Selling Unit
1/Each
Type
Ice Machine Head
Warranty
3 Years Parts & Labor, 5 Years Parts on Compressor
Features
Modular, 2 Seconds Flush Cycle Every Hour
Voltage
208/230 V
Amps
18.1 A
Refrigerant Type
R-404a
Hertz
60 Hz
Product Weight
326 lb
Mounting Configuration
Dual Unit in 60 Inches Space
Included
Auger With Bearing
Voltage Range
187 Volts - 253 Volts
Water Temperature Range
45°F to 90°F
Maximum Fuse Size
20 A
Refrigerant Capacity
2.5
Compatible Model
URC-22FZ
Product Depth
27.5 in
Water Inlet Size
1/4 in
Power Usage
3.9 kWh per 100 lbs.

Product Overview

The Hoshizaki F-2001MRJZ3 is a premium commercial flaker icemaker head engineered in Japan, featuring robust stainless steel construction and advanced CleanCycle24 technology. This professional-grade ice machine delivers consistent, high-quality flake ice perfect for seafood displays, food processing, and industrial cooling applications. The unit showcases Hoshizaki's commitment to excellence with its sleek silver finish and modular design.

Operating at 208/230V with three-phase power, this powerhouse maintains impressive production capabilities of up to 2023 pounds daily. The system incorporates an innovative 2-second flush cycle every hour, ensuring optimal ice quality and machine longevity. The remote-cooled configuration utilizing the URC-22FZ condenser operates with R-404a refrigerant, providing efficient cooling while maintaining a heat rejection rate of 19500 BTUs.

This versatile ice maker measures 30 inches wide, 27.5 inches deep, and 34.44 inches high, making it ideal for commercial installations. The unit features a 1/4-inch water inlet and 3/4-inch drain size, with flexible operation ranges of 45°F to 100°F ambient temperature and 45°F to 90°F water temperature. The hardwired system requires a 4-wire connection with a maximum fuse size of 20 amps, ensuring safe and reliable operation.

The F-2001MRJZ3 meets rigorous industry standards with NSF, AHRI, and UL certifications. It comes backed by a comprehensive warranty including 3 years parts and labor, plus 5 years on the compressor. The machine includes a heavy-duty auger with bearing and operates within a voltage range of 187-253 volts, demonstrating its adaptability to various commercial environments. Storage bin sold separately, allowing customization based on specific capacity needs.
