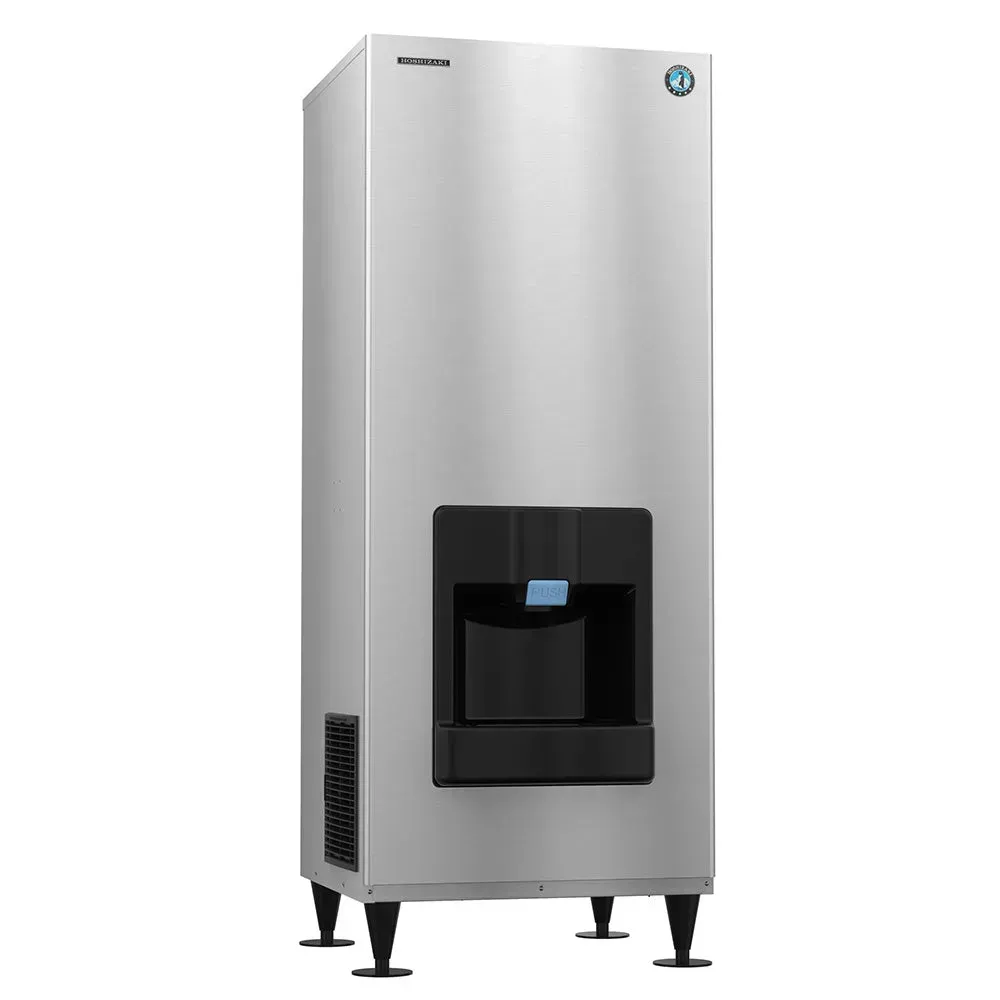

Floor crescent ice dispenser from Hoshizaki America makes five hundred forty five pounds daily, an ideal unit for hotel hallway or guest use.

Opening a Restaurant?

From kitchen equipment to financing, we’ve got you covered.

Key Specification

Manufacturer
Hoshizaki
Country of Origin
Japan
Material
Stainless Steel
Color
Silver
Voltage
115 V
Installation Type
Freestanding
Hertz
60 Hz
Bin Storage Capacity
200 lb
Plug Type
NEMA 5-20P
Shipping Weight
300 lb
Certifications
NSF Listed, AHRI Certified, UL Listed, Energy Star
Liner Type
Insulated Polyethylene Bin
Refrigerant Capacity
12.2
Power Cord Length
11 ft
Water Usage (Potable 90°F/70°F)
16.6 gal
Product Width
30 in
Product Height
77 in
24 Hour Ice Production
545 lb
Power Usage
5.56 kWh per 100 lbs.
Selling Unit
1/Each
Type
Ice Dispenser
Warranty
3 Years Parts, 5 Year Parts & Labor Evaporator, 5 Year Compressor Parts
Features
Self-Contained Design Limits Cross-Contamination
Ice Type
Crescent Cubes
Amps
13.5 A
Phase
1 Phase
Dispenser Style
Push Button
Refrigerant Type
R-404A
Condenser Type
Air Cooled
Style
Floor Model
Heat Rejection
9100 BTU/Hr
Design
CycleSaver
Legs
Flanged Legs Standard
Maximum Fuse Size
20 A
Product Depth
28 in
Product Weight
385 lb
Legs Size
6 in

Product Overview

The Hoshizaki DKM-500BAJ is a premium floor model ice dispenser crafted in Japan, featuring robust stainless steel construction and innovative CycleSaver design. This commercial-grade unit delivers superior performance with its crescent cube production, backed by Hoshizaki's renowned reliability and craftsmanship. The sleek silver exterior houses an insulated polyethylene bin, ensuring optimal ice preservation and hygiene standards.

Engineered for efficiency, this dispenser operates on 115V/60Hz power with a 13.5-amp draw and features an air-cooled condenser system. The unit utilizes R-404A refrigerant with a 12.2 capacity and achieves 9100 BTU heat rejection. The push-button dispensing mechanism ensures precise control, while the potable water usage remains efficient at 16.6 gallons per cycle.

Standing 77 inches tall with a compact 30-inch width and 28-inch depth, this dispenser maximizes space utility while providing substantial capacity. The unit comes equipped with 6-inch flanged legs for stability and includes an 11-foot power cord with NEMA 5-20P plug. Weighing 385 pounds, its robust construction ensures durability in demanding commercial environments.

This ice dispenser meets rigorous industry standards with NSF, AHRI, UL, and Energy Star certifications. Hoshizaki provides comprehensive warranty coverage, including 3 years on parts and 5 years on both evaporator parts/labor and compressor parts. The freestanding design with a maximum 20-amp fuse size makes it suitable for various commercial installations, from restaurants to healthcare facilities.
